Redshift

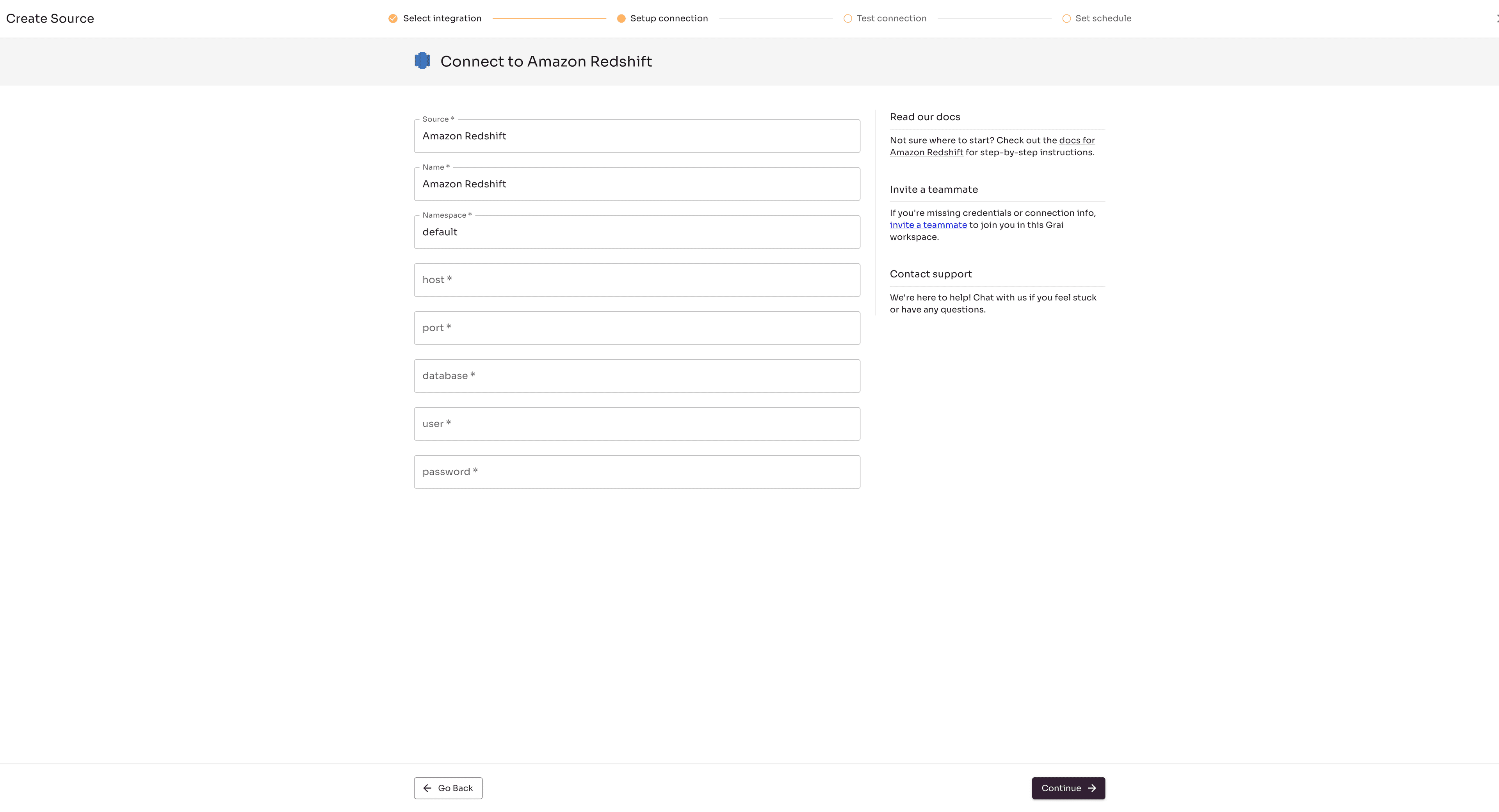

Web App

Fields

Field	Value	Example
source	The name of the source, see sources	my-source
Name	Name for connection	Postgres
Namespace	Namespace for the connection, see namespaces	default
host	Database host	sample-database.cudyk77thtpt.us-west-2.rds.amazonaws.com
port	Database port	5432
Database Name	Database Name	jaffle_shop
user	Database user
password	Database password

ℹ️

Your database will need to be accessible from wherever you are running the Grai server. If you are using Grai Cloud your database will need to be accessible from the internet.

Python Library

The Redshift integration can be run as a standalone python library to extract data lineage from your instance of Redshift.

The library is available via pip

pip install grai_source_redshift

More information about the API is available here.

Example

The library is split into a few distinct functions but if you only wish to extract nodes/edges you can do so as follows:

  from grai_source_postgres import RedshiftIntegration
  from grai_schemas.v1.source import SourceV1

  source = SourceV1(name="my-source", type="my-type")
  redshift_params = {
    "username": "my-username",
    "password": "my-password",
    "host": "https://prod.yourdomain.com",
    "port": 5432
  }

  integration = RedshiftIntegration(source=source, namespace="metabase", **redshift_params)

  nodes, edges = integration.get_nodes_and_edges()
